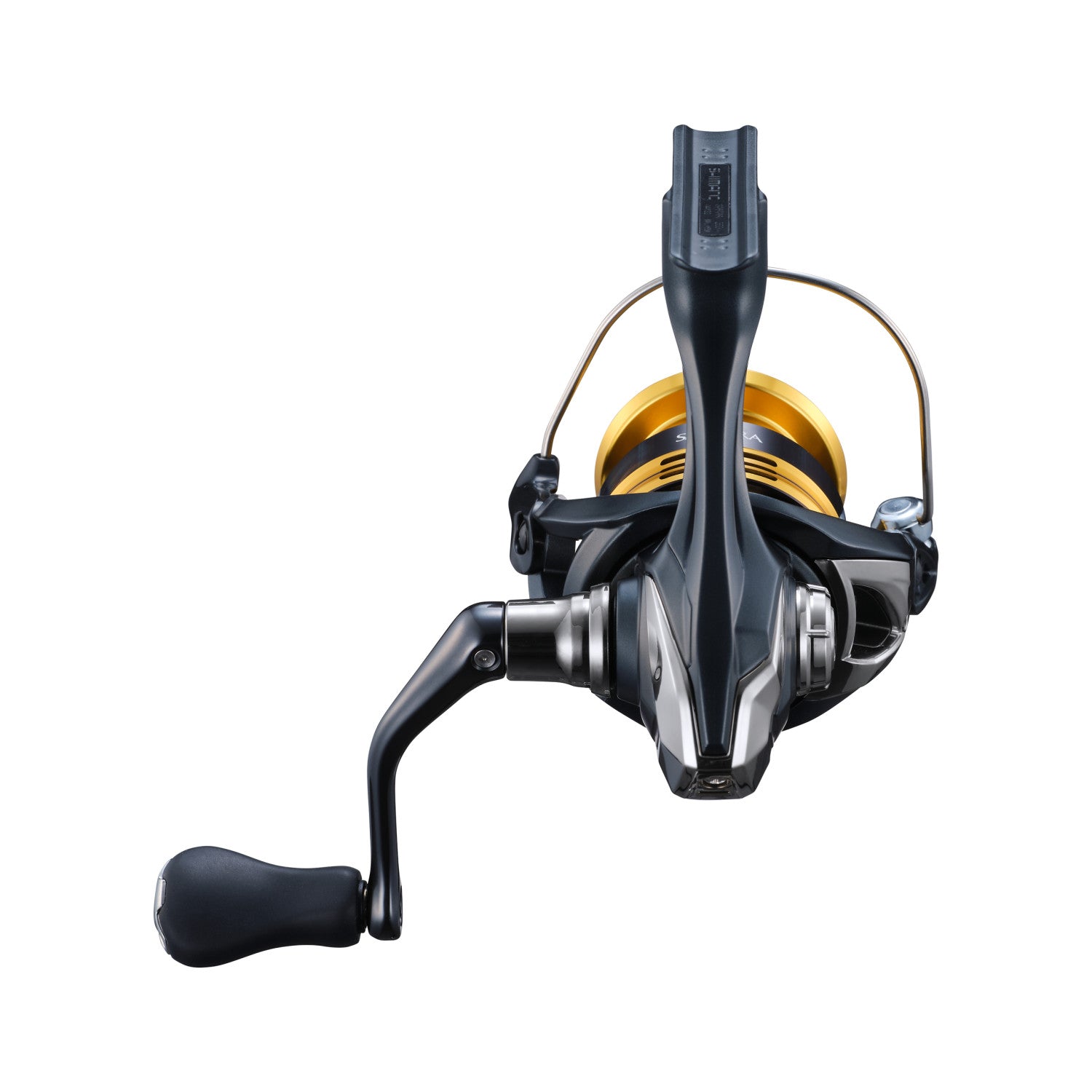

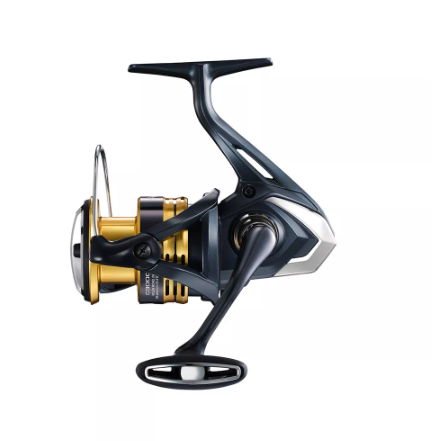

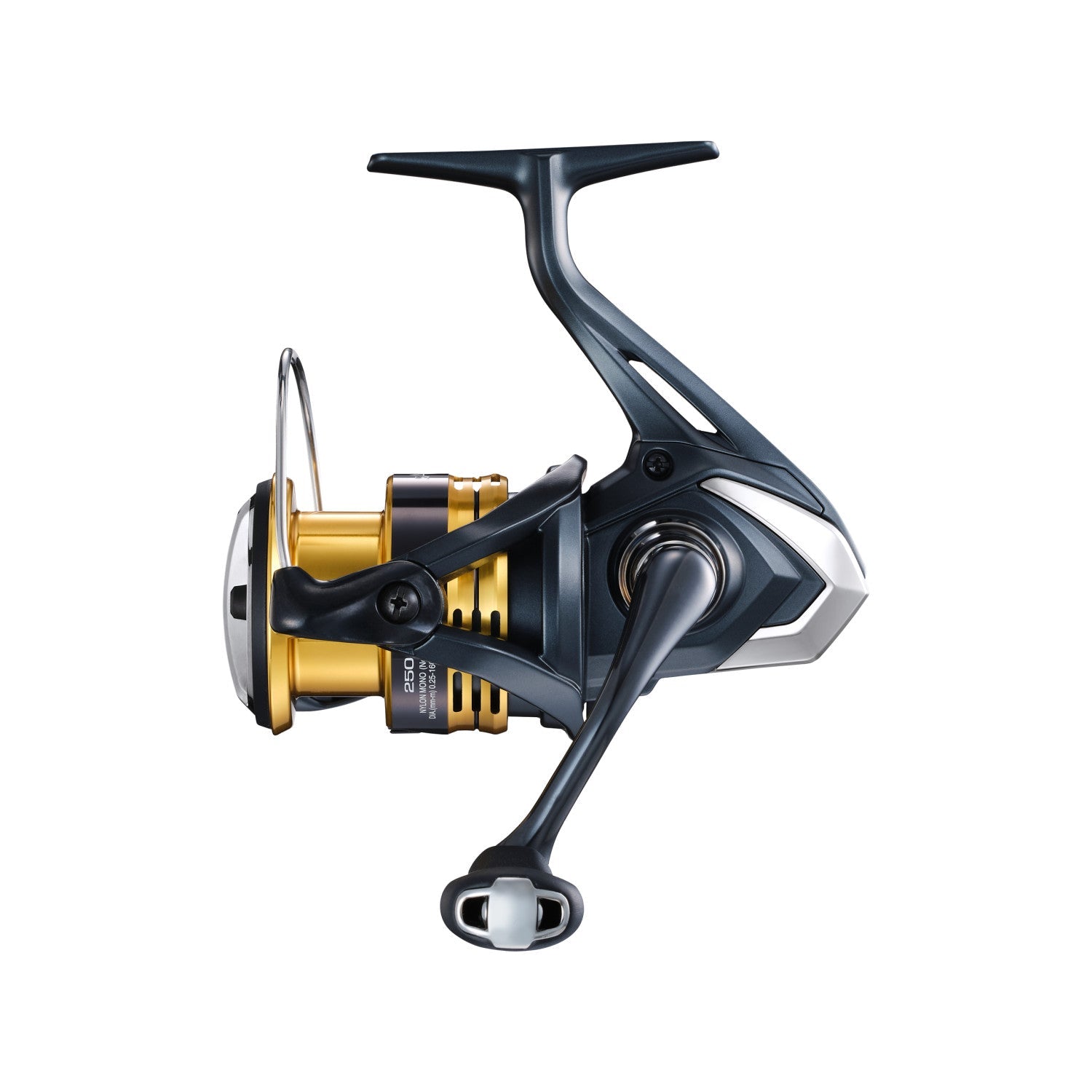

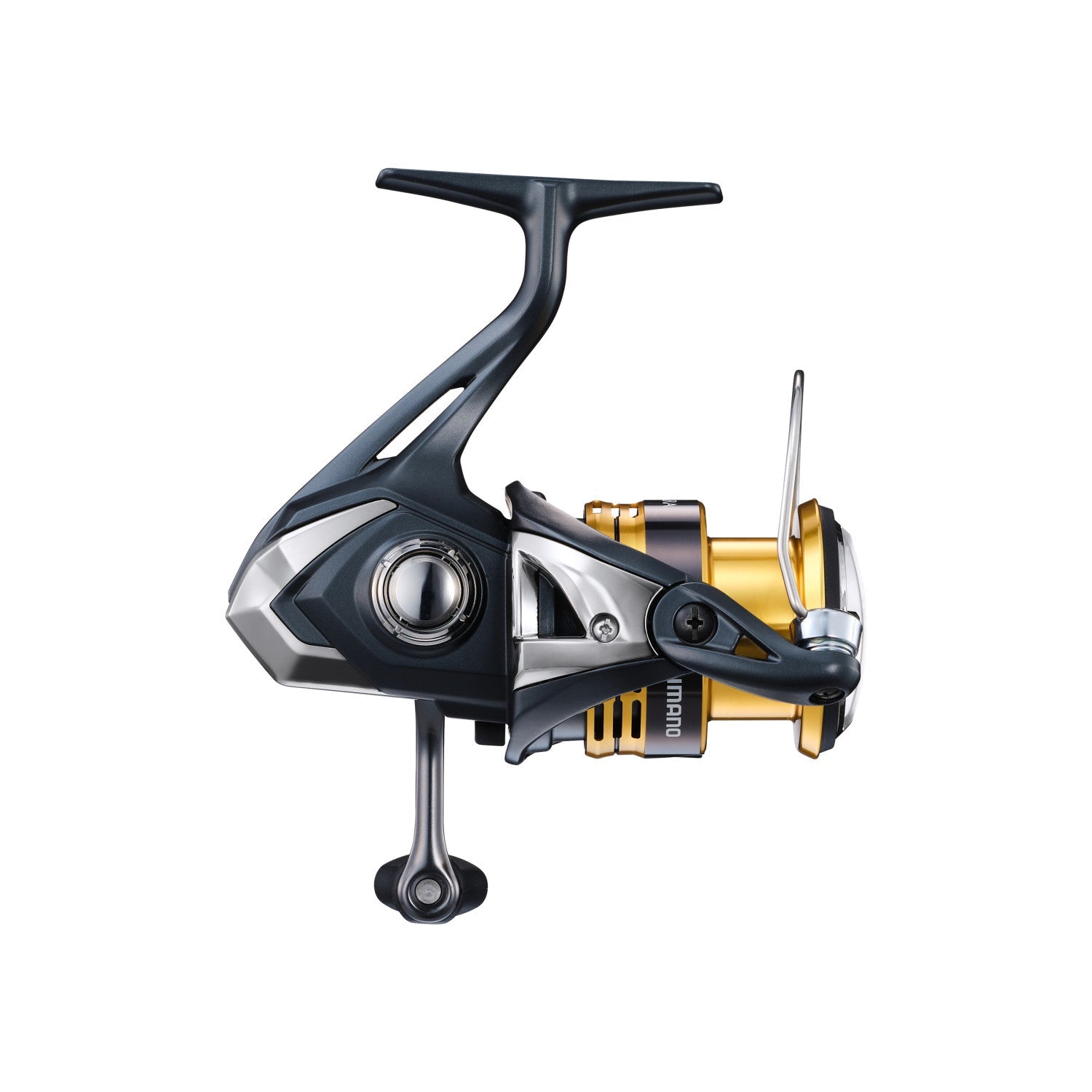

Shimano Sahara FJ - C3000HG

The 2021 Sustain series is one of the strongest in the Magnum Lite range. Re-engineered from top to bottom, the new sustain series features a range of new upgrades like Micro Module II and MGL Rotor to improve its finesse and on-water performance.

This model incorporates an MGL rotor to create a light start-up which allows the angler to wind faster and set the hooks quicker. Combining the MGL Rotor with the Hagane body produces a light, yet strong reel that can handle big saltwater battles. It is lighter than its predecessor and the Sustain now features a Long Stroke Spool to provide anglers with improved casting distance.

Micro Module II gearing is combined with Shimano's cold forged Hagane Gear and Silent Drive technologies — for smoother reeling performance. The matte black finish with gold trim and 8+1 ball bearings is sure to impress all anglers and the new feature upgrades will keep turning the heads of hard fighting fish.

Key Features

• HAGANE GEAR - The HAGANE Drive Gear is produced by Shimano’s cold forging technology, without the need for additional machining. This delivers a long lasting smoothness, strength, lightness and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.
• MICROMODULE II - Improved Micro Module gearing, making the reeling extreme smooth.
• XSHIP - XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the center line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.
• HAGANE BODY - The HAGANE Body is produced from high rigidity aluminum or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rock solid housing and support for the moving internal gearing and greater efficiency throughout the reel.
• SILENT DRIVE - Removed ‘clicking’ sound and ‘handle play’ and overall improved smooth reeling.
• MGL ROTOR - The new design of the Magnum lite Rotor produces unprecedented light rotation. The rotor profile, which was previously symmetrical, is now asymmetrical. The bail arm mechanism, which was previously situated on the same side as the line roller, has been moved to the opposite side. This improves balance and combined with a lightweight line roller, titan bail and optimum arrangement of rotor thickness, a 14% saving in rotation inertia has been achieved increasing sensitivity to previously unreached levels.
• XPROTECT - The contact type triple lip structure is introduced to the roller clutch, the pivotal point concerning water resistance. In this structure, the first lip prevents water from entering through the space between the rotor and the body. In addition, the special grease between the second and third lip where it makes contact with the rotor collar located at the upper part of the roller clutch not only resists water from entering but also minimizes friction resistance. Without jeopardizing the ‘silky smooth rotation capacity’, the vital feature of STELLA SW, exceptional water resistance, has been achieved to withstand the crashing and splashing of waves and spray.
• G FREE BODY - G Free Body technology has been developed to shift the reel’s center of gravity closer to the rod. This has been achieved by moving the worm shaft oscillation mechanism 19mm from the bottom of the reel to the top. By moving the center of gravity closer to the anglers hand position, the G Free Body helps to reduce fatigue and enhance casting comfort.
• ARC SPOOL - Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.
• LONG STROKE SPOOL - The long stroke spool design improves casting performance when compared to the previous model due to improved line flow from the spool.
• CI4 PLUS - CI4+ is an advanced version of the original CI4. This highly technical material is 2.5 times stiffer than CI4 and is used on many high-end Shimano reels to increase weight savings. Use of CI4+ for the body and rotor also delivers remarkable stiffness for better reel efficiency.
• RIGID SUPPORT DRAG - By strengthening the spool support of the main shaft, the play and fluctuation of the spool during drag operation are suppressed, allowing smooth drag delivery even under high load.
• S ARB - Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.
• CROSS CARBON DRAG - The cross carbon drag provides a wider range of drag setting, along with the smoothest Shimano drag performance ever.
• ONE PIECE BAIL - The one-piece bail wire has no gap for line to snag on during normal operation. Made of Stainless Steel, it reduces friction and allows the line to get onto the line roller quicker.
