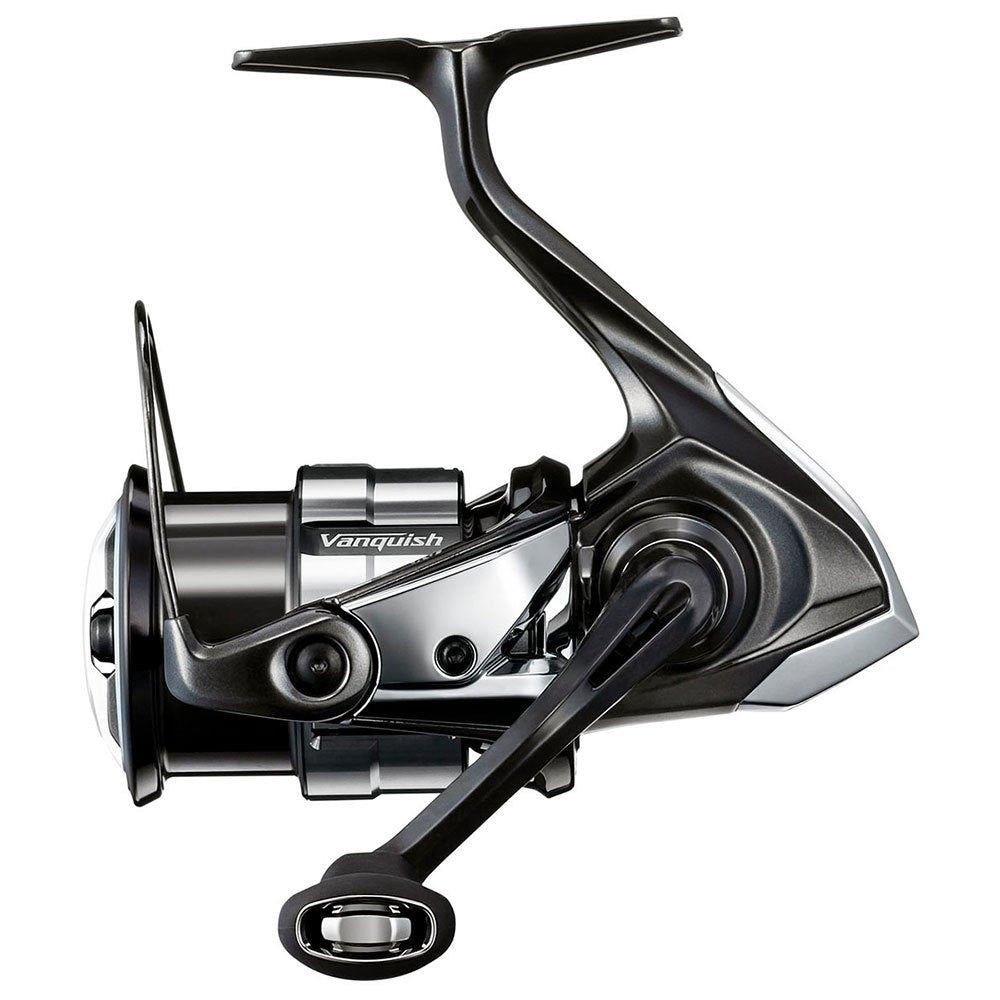

Shimano Vanquish 2023 - 4000MHG

Beyond Lightness.

For anglers who want enhanced control of their lure's action. For anglers who want to feel even the smallest of changes during the retrieve. Embody these desires and enhance your senses to a new degree. With advanced sensitivity, explore a world you've never seen before. The pinnacle of the MGL series, the 23 Vanquish exemplifies the pursuit of lighter weight, lower inertia, and increased sensitivity.

Benefiting from the inclusion of innovative new Infinity technologies first used in the 22 Stella. The 23 Vanquish provides anglers with the same exhilarating casting feeling, while gear durability, rotational smoothness, and power transmission have also been increased. In addition, the trouble-free line performance and drag wear resistance have also been adopted. Not just physically light, the 23 Vanquish achieves a highly-refined lightness and response that appeals to the anglers sensitivities and has overwhelming potential in all directions. The new Vanquish is the most advanced racing-spec spinning reel Shimano has ever produced.

SHIMANO 23 VANQUISH SPIN REELS

Overview

Features

Specifications

FEATURE

Technology Movie

FEATURE

Technology Details

HAGANE

HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.

HAGANE GEAR

With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and enjoyment that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication; instead, the entire surface is calculated in minute detail by a special 3D design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the result of Shimano's endless pursuit for durability — this strength and power of forged metal continue to represent the fundamental concept of Shimano reels.

MICROMODULEⅡ

The MICROMODULE Gear II has evolved with Shimano's unique manufacturing technology and a state-of-the-art gear-tooth surface design. The drive and pinion gear surfaces have been analyzed and updated from the ground up in Shimano's pursuit of perfection to further improve the smooth gear feeling and reduce sound.

X SHIP

X SHIP provides improved gear performance. Large diameter drive gear, optimally positioned pinion gear and drive gear, and two points bearings supported pinion gear produce light reeling under load.

HAGANE BODY

The use of lightweight and rigid metals such as aluminum and magnesium firmly suppresses deflection, distortion, and torsion of the reel. This protects delicate gear meshing and enables smooth reeling.

INFINITY LOOP

Super slow oscillating that goes beyond slow oscillating. The speed at which the spool moves up and down has been made overwhelmingly slow through the evolution of the internal structure. The line is wound around the spool one by one in an orderly and precise manner, and the line release resistance has been successfully reduced significantly. This has realized an exhilarating casting feel and smooth line feed.

INFINITY XROSS

INFINITYXROSS provides superior gear durability through industry-leading design and cutting-edge manufacturing technology. Advancements in the gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.

INFINITY DRIVE

INFINITYDRIVE is a new main shaft supporting structure that improves winding torque and allows for incredibly smooth and light rotation.

DURACROSS

DURA CROSS is a revolutionary new drag washer that has been designed using cutting-edge materials woven in an orthogonal pattern. The result is a drag system that produces perfectly smooth consistent drag pressure, while utilizing a material that is more than 10 times more durable for added performance.

SILENT DRIVE

The basic design of the entire body and drive-related parts were reviewed one by one to reduce minute rattles, gaps, and shaking between parts down to the smallest detail. It provides smooth and quiet reel rotation.

MGL ROTOR

The new design of the MAGNUMLITE ROTOR produces unprecedented light and sensitive rotation. The rotor profile — which was previously symmetrical — is now asymmetrical, and the bail arm mechanism — previously situated on the same side as the line roller — has been moved to the opposite side. Furthermore, the line roller has been lightened, the bail has been made of titanium, and the rotor wall thickness has been optimally arranged to successfully reduce rotational inertia.

ANTI TWIST FIN

ANTI-TWIST FIN ensures trouble-free line management. A flexible polymer fin is installed near the line roller to maintain line tension and prevent line from wrapping around the spool in an uneven manner. STELLA FK also features a redesigned spool edge and drag knob that minimizes the possibility of the line becoming snagged. Utilizing technology with a proven track record in Stella SW, a proprietary barrier coat is applied for strong abrasion resistance.

X PROTECT

For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.

G FREE BODY

G FREE BODY technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G FREE BODY helps to reduce fatigue and enhance casting comfort.

AR-C SPOOL

Shimano AR-C Spool features a special spool ring shape. This design effectively minimises the possibility of issues when line exits the spool, resulting in trouble-free line management and exceptional casting performance.

LONG STROKE SPOOL

The LONG STROKE SPOOL has a longer stroke compared to conventional spool designs. It contributes to improved casting feel and distance.

CI4+

CI4 is a resin material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material.The rigidity and durability have been greatly improved from original CI4 material while maintaining the lightness of the material, making it possible to reduce the size and weight of the reel.

RIGID SUPPORT DRAG

By strengthening the spool support of the main shaft, the play and fluctuation of the spool during drag operation are reduced. The RIGID SUPPORT DRAG allows smooth and consistent drag delivery.

S A-RB

S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting the rotation of the bearing.

ONE-PIECE BAIL

ONE-PIECE BAILallows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.
